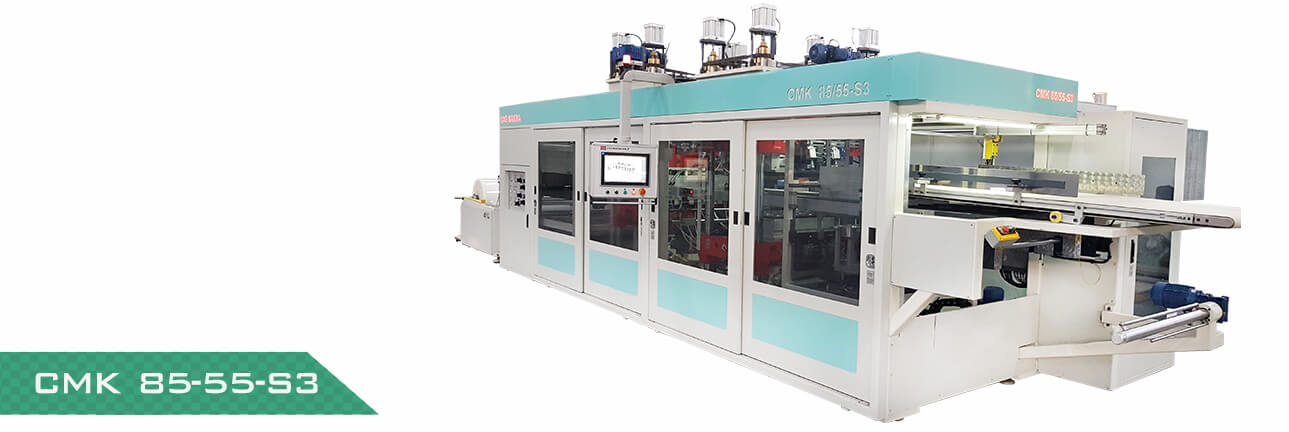

CMK 85-55-S3 Station Thermoforming Machine
MACHINE MAIN SPECIFICATION | |
---|---|
Max. Sheet Width | 930 mm |
Max. Sheet Thickness | 0.2 mm /1.6 mm |
Max. Product Height | 150mm +/-150mm |
Applicable Materials | PP-PS-PET-PVC-OPET-PLA |
Idle Speed | 80 cycles/min |
Total Installed Power | 170 kW |
Power Consumption in Operation | 50-55 kW |
Processing Air Pressure | 8 bar |
Compressor Power | 7m³/min |
Required Chiller Capacity | 205m³ |
Machine Dimension | L 1200 x W 260 x H 280 cm |
Machine Weight | 11.000 kg |
MACHINE COMPONENTS | |
---|---|
AC motor and Gear Box | YILMAZ |
Pneumatic Group | METAL WORK |
Servo System | SEW |
Lubrication Unit | LUBRIMAC |
Bearing | INA |
Chain | IWIS |
Resistance | CERAMIX |
Electrical Parts | SCHENEIDER |
CMK 85/55-S3 Station Thermoforming Machine is eligible to form round and rectangular shape lids, plates and trays, single or mu iti compartment containers, hinged lid containers, leaking-proof containers, egg viyole, ete. Machine adopts the latest thermoforming technology itself and intelligent control. This model combines maximum speed and bulk production, high quality and efficiency, and low consumption in energy. lts mould is equipped to perform well with polymer plastics as well as biodegradable plastics.
OTHER TECHNICAL SPECIFICATION
*AII units are fully automatic
*Movable touch control panel
*Screen size 75″ and colour
*Electricity panel assembled to the machine and cooling by AC
*Ethernet portal
*Possible to store different mould settings
*Convenient and fast mould change and pneumatic fixing
*Pneumatic control systems with servo motors
*Automatic lubrication of moveable parts which is activated as per the specified time space
*Safety sensors for mould assemble
*An innovative smart system which allows the operator an easy-to-use interactive interface
*Pneumatic system for sheet roll lifting up (Ø1200 mm)
*Sheet sensor
*Protection sensors
*Automatic va ive for water in/out
CMK 85-55-S3 STATION | FORMING | CUTTING | STACKING |
Max. Tool Area | 890 x 570 mm | 890 x 570 mm | 890 x 570 mm |
Max. Process Area | 850 x 550 mm | 850 x 550 mm | 850 x 550 mm |
Upper Group Servo Motor | 5.5 kW | 5.5 kW | 3 kW |
Lower Group Servo Motor | 5.5 kW | 5.5 kW | |
Reference Servo Motor X-Y | 0.75 kW | 0.75 kW | 0.75 kW |
Total Motor Power | 24.2 kW | 17 kW | 4.1 kW |

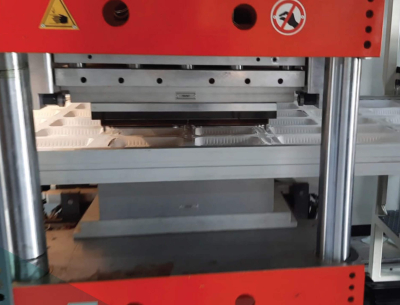

FORMING STATION
*4-column, servo-controlled station groups
*Needle bearing toggle system
*Cooling water flow control system
*Max stroke upper/lower 150 mm
*Lubrication system for each bearing
*Easy mould damping (with Locking System)
*Support piston upper and lower group
*Upper group spacing system (Positioning block parallelism)
*Ability to work with frame or press in upper and lower press
*Servo controlled seal system
*Compression force 60 tons

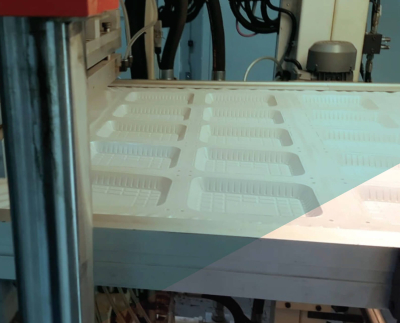

CUTTING STATION
*4 Column cutting station
*80mm diameter resistant shafts in each column
*Lower and upper independent servo motor station groups
*Cutting right – left and forward – reverse motorized adjustment system
*Max 780°C cutting blade temperature and insulation plate.
*Fast blade damping system
*Cutting group stroke lower/upper 750 mm
*Needle bearing system
*Piston upper group dearance system
*Compression force 60 tons
