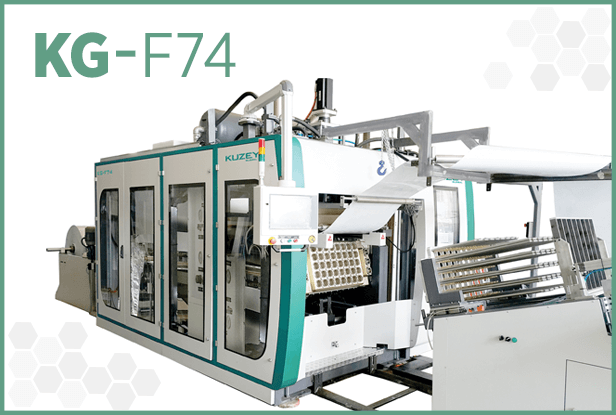

KG-F74 Full Otomatik Termoform Makinası
THERMOFORMING | |
---|---|
Forming Area | 710 x 480 |
Max. cutting dimension (mm) | 690 x 450 |
Max. positive depth (mm) | 10 max |
Max. negative depth (mm) | 150 |
Max. sheet width (mm) | 750 |
Clamping force (kN) | 5000 |
Upper heating, installed power (Kw) | 83 (full opt) |
Lower heating, installed power (Kw) | 66 (full opt) |
Dry cycles speed (cicles/1’) | 33 |
Processing air pressure (bar) | 8 |
UNWINDER | |
---|---|
Reel holder | Single |
Max. reel diameter (mm) | 1200 |
GENERAL FEATURES | |
---|---|
Total installed power (full opt – Kw) | 190 |
Lenght (mm) | 11.300 |
Width (mm) | 3.500 |
Height (mm) | 3.400 |
Weight (stacker excluded – Kg) | 12.100 |
General Features
– Synchronized forming and cutting by tilting movable lower platen to 85 degrees
– Sheet ; pitched by double toothed chains and move on abrasion resistant slide plates;
– Precise heater control for upper and lower pan.
– Upper and lower Mold ; heats control by indivudial Thermoregulation device
– Fine adjustment for mold by electric drive.
– PLC for control the line operation and to supervise working parameters
– Non-stop working capacity with easy maintain mechanical system.
– Safety system ensured by sensors such as sheet sagging , pressure drop,door ajar situations
– Water and Heat balance measure sensors for mold which can be control by PLC system
– Energy analyzer which gives amount of the electric consumption
– Cutting adjustment possible by digital meter ,controlled by PLC.
– Plug asist motor and plug speeds all controlling by PLC suitable to put variotions of movement to plugs to plugs,start slow go fast end slow etc

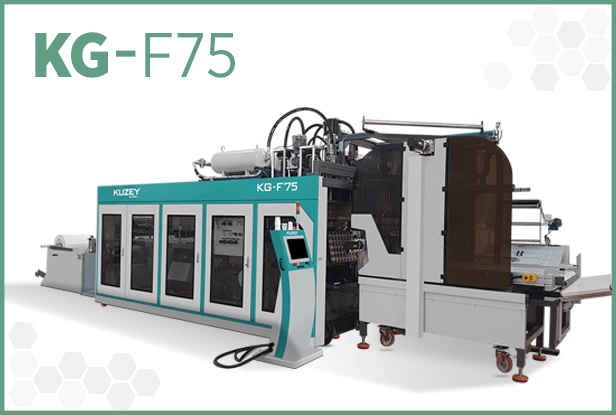

KG-F75 Full Otomatik Termoform Makinası
THERMOFORMING | |
---|---|
Forming Area | 745 x 510 |
Max. cutting dimension (mm) | 725 x 480 |
Max. positive depth (mm) | 10 max |
Max. negative depth (mm) | 150 |
Max. sheet width (mm) | 750 |
Clamping force (kN) | 300 |
Upper heating, installed power (Kw) | 88 (full opt) |
Lower heating, installed power (Kw) | 72 (full opt) |
Dry cycles speed (cicles/1’) | 45 |
Processing air pressure (bar) | 8 |
UNWINDER | |
---|---|
Reel holder | |
Max. reel diameter (mm) | 1200 |
GENERAL FEATURES | |
---|---|
Total installed power (full opt – Kw) | 200 |
Lenght (mm) | 12.600 |
Width (mm) | 3.500 |
Height (mm) | 3.500 |
Weight (stacker excluded – Kg) | 16.000 |
General Features
– Synchronized forming and cutting by tilting movable lower platen to 80 degrees
– Sheet pitched by double toothed chains and move on abrasion resistant slide plates;
– Lengthened pan design allows to reach optimum forming heat without using pre-heater machine
– Upper and lower Mold ; heats control by indivudial Thermoregulation device
– Fine adjustment for mold by electric drive.
– Traversing and tilting moving system of mould
– PLC for control the line operation and supervise working parameters
– Opportunity to set one or more forming cycles without cutting by pneumatic drive
– High production capacity with resistant to high speed Strong and vibration free main body
– Double inlet- outlet system for fast cooling by increasing water discharge.
– Energy analyzer which gives amount of the electric consumption
– Cutting adjustment possible by digital meter ,controlled by PLC.
– Plug asist motor and plug speeds all controlling by PLC suitable to put variotions of movement to plugs to plugs,start slow go fast end slow etc
